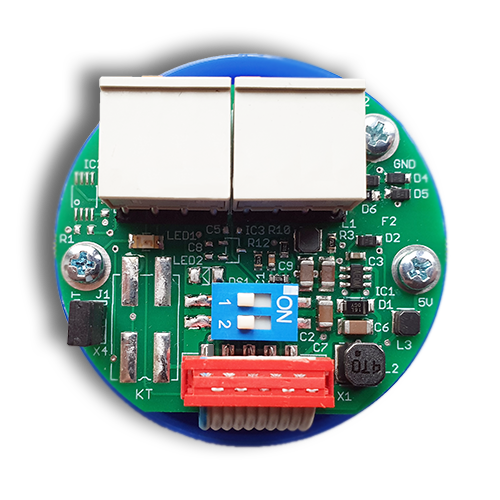

Interface BL24

The SUNNYHEAT Interface BL24 can do two things:

The setpoint temperature can be controlled via a bus system (e.g. KNX)
The lighting can be switched on and off via a push-button

Both functions can be very practical. If the building already has a bus or Smart Home system, SUNNYHEAT integrates itself into it. The setpoint temperature can be changed by means of a bus module. Controlling the lighting not only via ECOcontrol but also via a push button has the advantage that the push button fits seamlessly into the switch programme and the lighting can be operated in the usual way.

Technical data

Dimensions: ⌀ 5.1 cm
Operation: bus module / push button
Frequency: 868 Mhz
Power: 24 V DC
Protection: IP20
Mounting: Flush-mounted

To the instructions

Right in the middle instead of just being there

The SUNNYHEAT Interface BL24 integrates SUNNYHEAT into your existing Smart Home System. This requires a bus module that supplies 0 - 10 volts for the setpoint temperature. The setpoint temperature is then transmitted to the SUNNYHEAT system with the SUNNYHEAT BL24 Interface.

Light on

A SUNNYHEAT with lighting can be operated via ECOcontrol or a smartphone. If you also want to operate the lighting as usual via a light switch, you can use the SUNNYHEAT Interface BL24. A 24 V connection is required.

Everything listens to my command

SUNNYHEAT can be expanded from an infrared heater with a thermostat to a small smart home system. With the appropriate software, everything is then controlled from a central location or operated with Alexa.

Article	Name
221114	SUNNYHEAT Interface BL24
