Glass type: structure

Glass type: structure

roughened playful shimmering

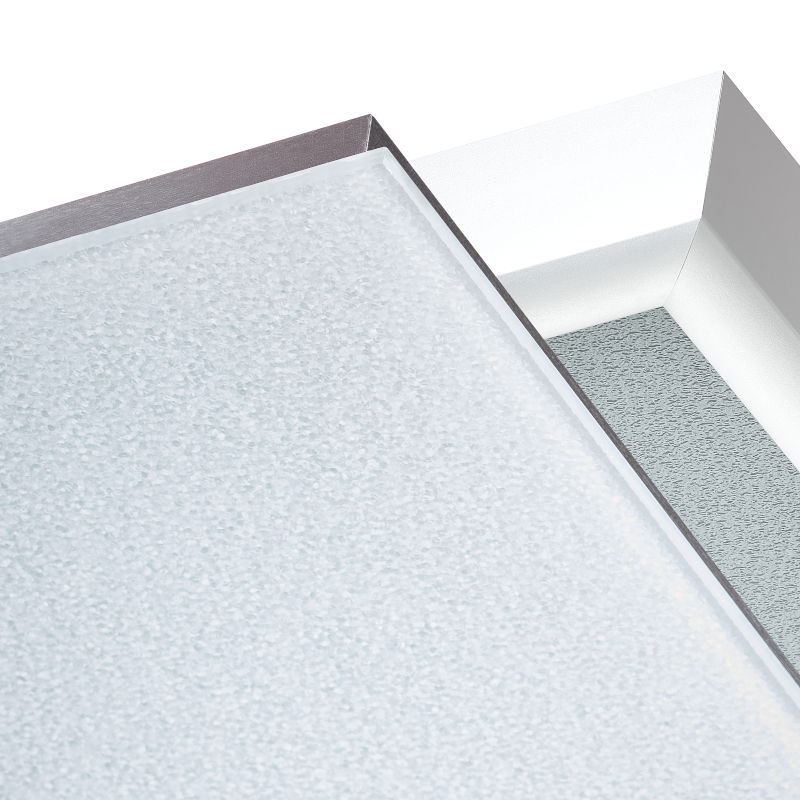

Structure

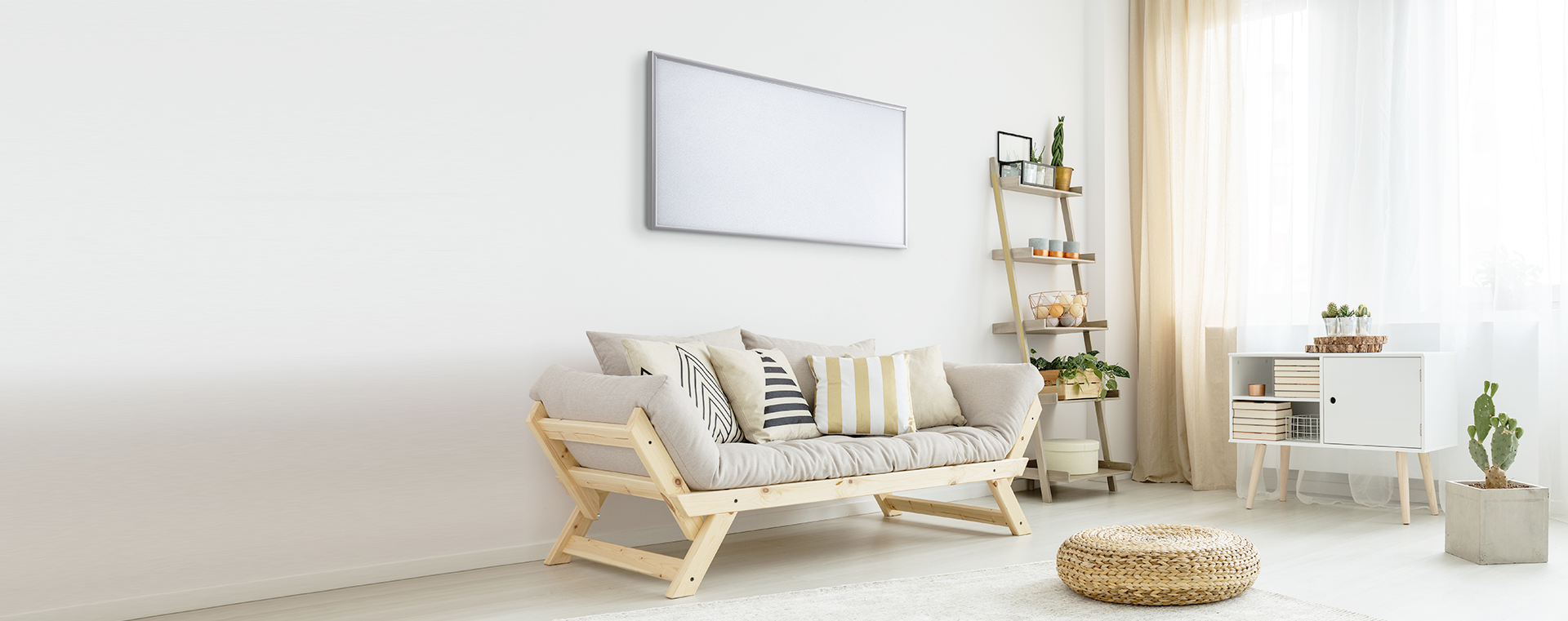

Our structured glass blends discreetly into any living situation. Whether in your stairwell, living room, office or bedroom; structured glass is suitable for all types of surroundings and provides interesting light reflections because of its coarse surface.

Technical data

  • Surface: Structure (Safety glass)
  • Frame: Aluminium (optional)
  • Voltage: 230 V / 50 Hz
  • Surface temperature: Variable between 0 and 180 °C
  • Control system: ECOcontrol
  • Operation: ECOcontrol, Alexa (optional)
  • Safety: Over temperature guard
  • Protection: IP20
  • Mounting: Ceiling mounting, wall mounting, mounting with SUNNYHEAT wall mounting angle, mounting with SUNNYHEAT base
To the data sheet

Well regulated

The integrated, clever energy management is the great advantage of SUNNYHEAT. With the high power and high surface temperature you have a large capacity reserve in order to heat cooled rooms quickly, smoothly and efficiently.

However, thanks to the innovative concept you do not consume more energy than necessary! The SUNNYHEAT heating regulates its energy consumption automatically down if the room has reached your desired temperature and only needs to be kept on temperature.

SUNNYHEAT is the heating system with brains!

Format Surface Frame Power
60 x 60 cm Safety glass Aluminium / Frameless 0 until 1000 W (electronically regulated)
60 x 90 cm Safety glass Aluminium / Frameless 0 until 1500 W (electronically regulated)
60 x 120 cm Safety glass Aluminium / Frameless 0 until 2000 W (electronically regulated)
60 x 150 cm Safety glass Aluminium / Frameless 0 until 2500 W (electronically regulated)
30 x 30 cm Safety glass Aluminium 0 until 250 W (electronically regulated)
30 x 60 cm Safety glass Aluminium 0 until 500 W (electronically regulated)
30 x 90 cm Safety glass Aluminium / Frameless 0 until 750 W (electronically regulated)
30 x 120 cm Safety glass Aluminium / Frameless 0 until 1000 W (electronically regulated)
30 x 150 cm Safety glass Aluminium / Frameless 0 until 1250 W (electronically regulated)



To the complete article overview
